These quality made glass bricks are made in France with most of them achieving various fire ratings conforming to Australian Standards. Many unique patterns are available and suit most building applications with or without a fire rating requirement.*

La Rochère Fire Rated Glass Block Range


PLEASE NOTE: IT IS VERY IMPORTANT THAT YOU FACTOR IN THE FRAME REQUIRED WHEN DESIGNING YOUR WINDOW SIZE, THERE ARE FOUR TYPES OF INSTALLATION THAT REQUIRE FOUR DIFFERENT SIZES: SILICONE SYSTEM, MORTAR SYSTEM, MORTAR DIY SYSTEM, AND FIRE RATED SYSTEM. WE URGE YOU TO CONTACT US OR AT LEAST CONSULT THE GLASS BLOCK FRAMES PAGE FOR INFO.


60 Minute Fire Rating Range

The first rating (FRL 60/-/-) relates to ability to withstand load in a fire. As this is glass, it isn’t load bearing any time so this figure is irrelevant in relation to Fire Resistance Levels of glass blocks.
The middle rating (FRL -/60/-) relates to ability to contain smoke and flame for a certain period of time.
The last rating (FRL -/-/60) relates to ability to contain heat transfer for a certain period of time.

La Rochere Nuagee Flemish Glass Block.jpg

Nuagee Flemish (Wave) 190x190x80
FRL -/60/-

(Normally in stock)

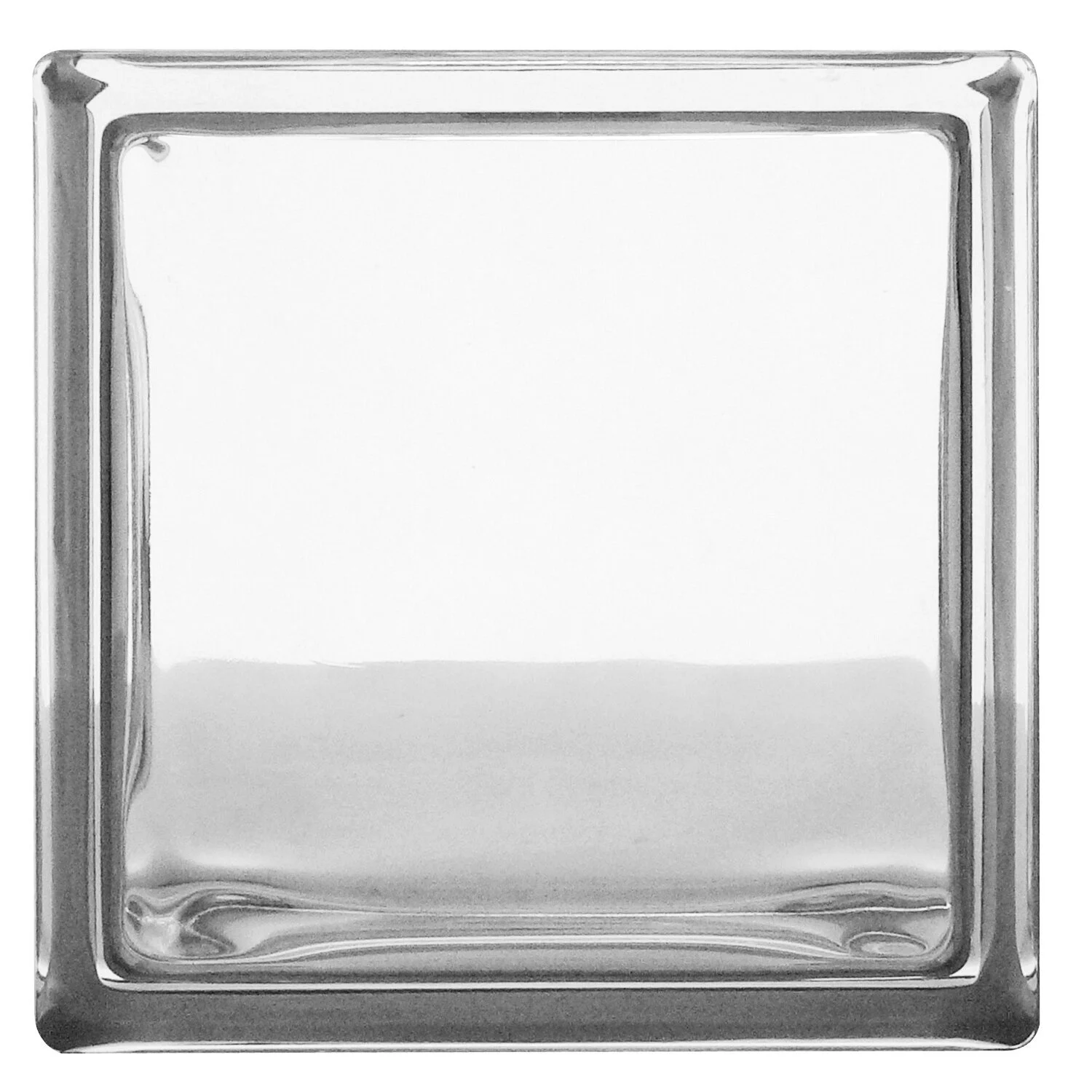

La Rochere Tranparent Glass Block.jpg

Transparent (Clearview) 190x190x80

FRL -/60/-

(

Normally in stock

)

La Rochere Quadrillee Glass Block Front.jpg

Quadrillee (Cross Rib)

190x190x80

(Front view)
FRL -/60/-

(Normally in stock)

La Rochere Quadrillee Glass Block Back.jpg

Quadrillee (Cross Rib)

190x190x80

(Back view)


FRL -/60/-

(Normally in stock)


La Rochere Satinee Frosted Glass Block.jpg

Satinee

(Frosted) 190x190x80
FRL -/60/-

(Normally in stock)

La Rochere Xenon Glass Block Front.jpg

Xenon

(Light Diffusing) 190x190x80 (Front view)
FRL -/60/-

(Normally in stock)

La Rochere Xenon Glass Block Back.jpg

Xenon (Light Diffusing)

190x190x80 (Back view)


FRL -/60/- (Normally in stock)

La Rochere Rondo Glass Block.jpg

Ronde (Rondo) 190x190x80
FRL -/60/-

(Normally in stock)


La Rochere Fresnel Glass Block.jpg

Fresnel

190x190x80
FRL -/60/-

(Special Order)

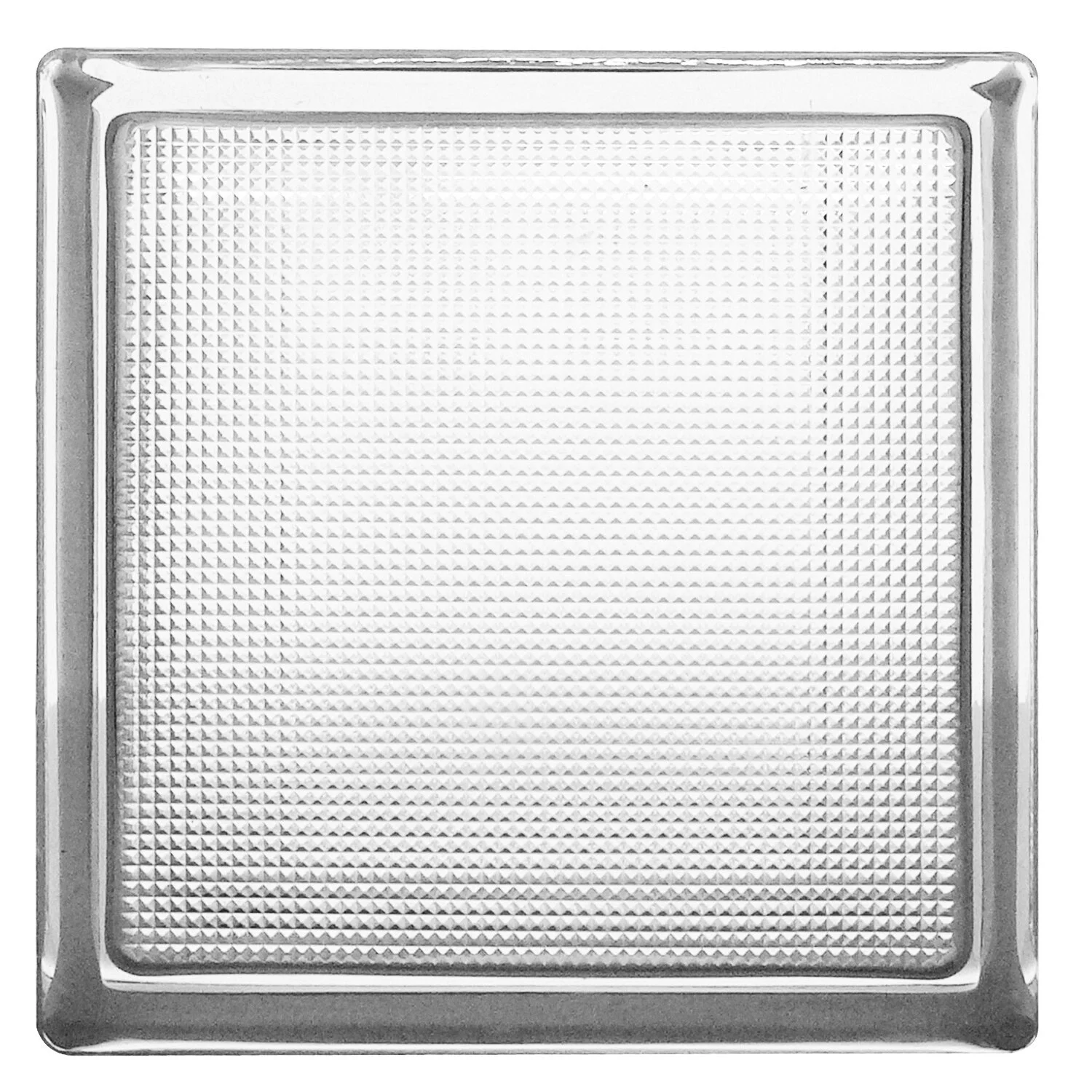

La Rochere Java Glass Block.jpg

Java

190x190x80
FRL -/60/-

(Normally in stock)

La Rochere Mosaico Glass Block.jpg

Mosaico

190x190x80
FRL -/60/-

(Special Order)

La Rochere Omega Glass Block.jpg

Omega

190x190x80


FRL -/60/- (Special order)


90 Minute Fire Rating Range

The middle rating (FRL -/90/-) relates to ability to contain smoke and flame for a certain period of time.

La Rochere Nuagee Flemish Glass Block.jpg

Nuagee Flemish (Wave) 190x190x100
FRL -/90/-

(Normally in stock)

Satinee

(Frosted) 190x190x100
FRL -/90/-

(Normally in stock)

La Rochere Tranparent Glass Block.jpg

Transparent (Clearview) 190x190x100


FRL -/90/-

(Normally in stock)



La Rochere Quadrillee Glass Block Front.jpg

Quadrillee (Cross Rib)

190x190x100

(Front view)
FRL -/90/-

(Normally in stock)

La Rochere Quadrillee Glass Block Back.jpg

Quadrillee (Cross Rib)

190x190x100

(Back view)
FRL -/90/-

(Normally in stock)




Multiple Layer Blocks achieving Fire Insulation Ratings

The last rating (FRL -/-/60) relates to ability to contain heat transfer for a certain period of time.

These glass bricks are purpose made to achieve the insulating function, whilst having a practical purpose, they do suffer slightly in appearance. There is a multiple layers of glass and silicone film to look through so they don’t have the lustrous crystal-like appearance of single layered glass bricks. They also are a lot more expensive than single layered glass blocks. Our recommendation is to use these only when necessary, for example, a shared hallway in an apartment building where people may have to pass by a burning apartment to safety. Not so much in a stairwell or boundary wall where there is open space on the other side of the wall.

La Rochere TF30 Transparent Glass Block.jpg

TF30 Transparent 190x190x100
FRL -/60/30 (Special Order)

La Rochere TF60 Satinee Glass Block.jpg

TF60 Satinee 190x190x150
FRL -/90/60

(

Special Order

)

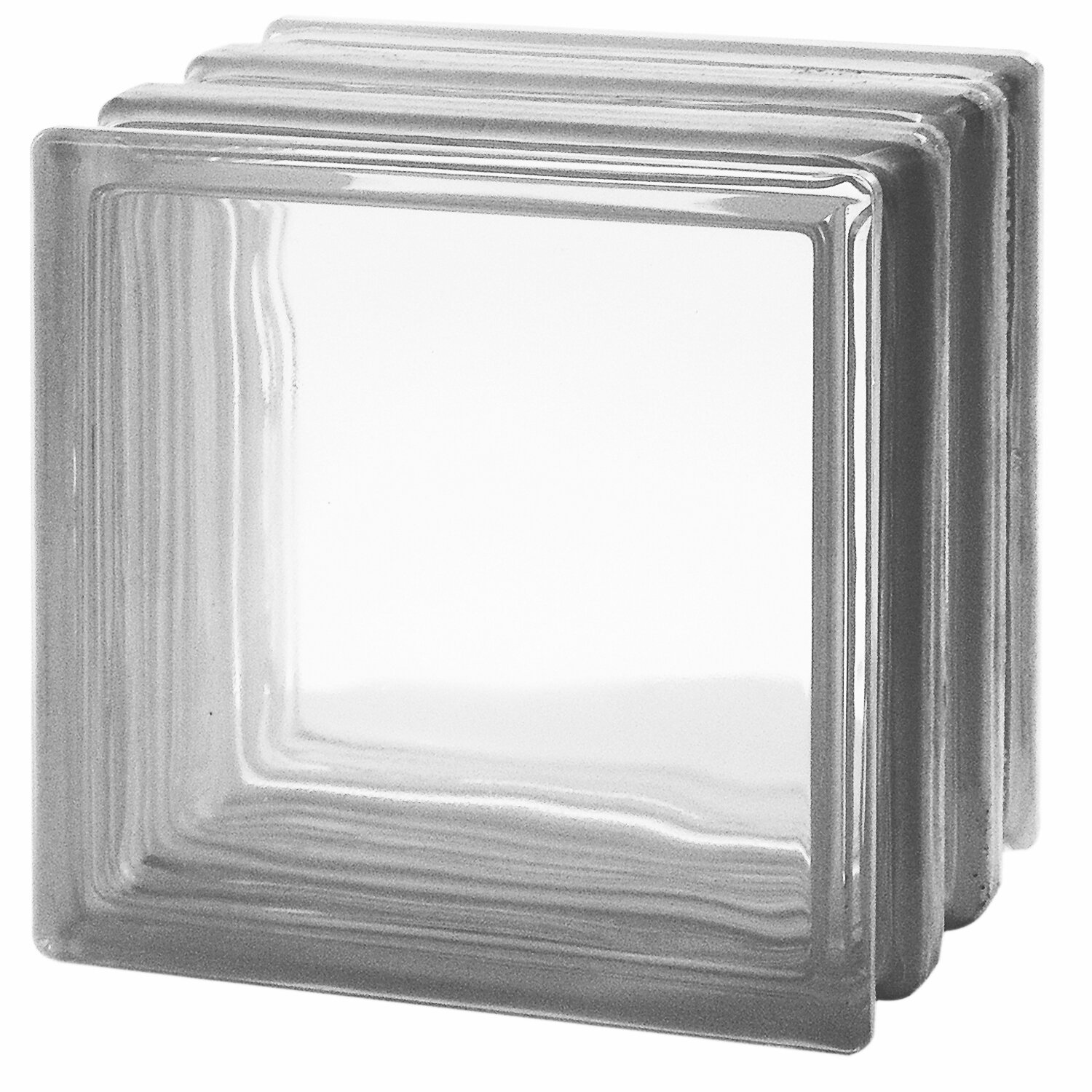

La Rochere TF60 Transparent Glass Block.jpg

TF60 Transparent 190x190x150
FRL -/90/60

(

Special Order

)

Fuchs Design 5 Glass Block FRL -120120.jpg

Fuchs Design 5 190x190x200
FRL -/120/120

(

Special Order

)


La Rochere Nuagee Flemish Glass Block Frosted.jpg

All Glass Blocks can be sand blasted
on request (Short wait)

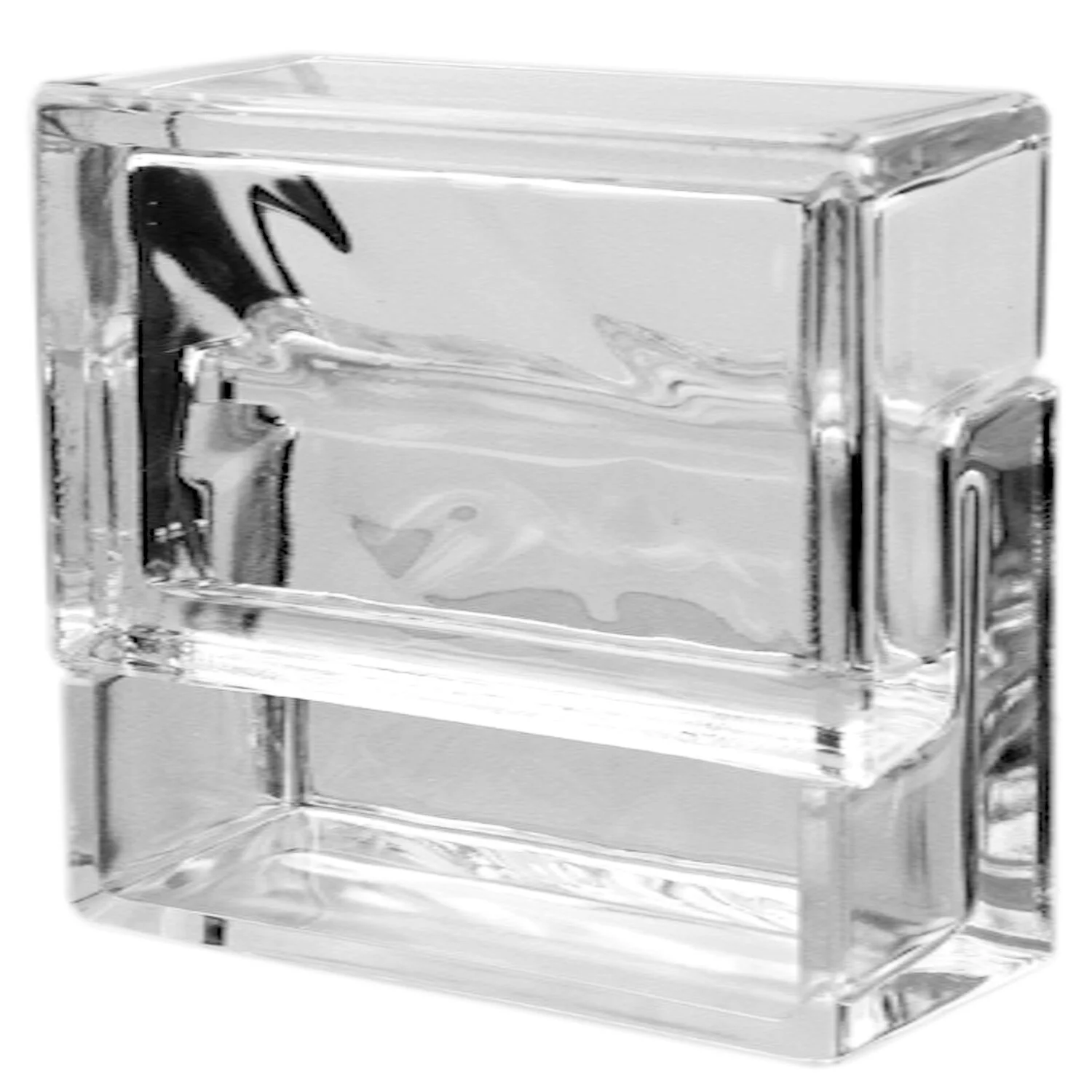

La Rochere Nuagee Ventiblock Glass Block.jpg

Nuagee Ventiblock 190x190x80 Ventilation Block (Special order)
(Not Fire Rated)

La Rochere P19.100 Glass Paver Block.jpg

P19.100 Glass Paver Block
(Special order)



*Fire Resistance Ratings

*Fire resistance rating. In Australia, we have a minimum fire resistance level (60 minutes) to meet fire codes in particular building applications (eg. boundary walls and fire escape stairwells) . Most glass bricks will resist fire for a good period of time.
The difference between some bricks and others may be very slight eg: 59 minutes is almost the same as 62 minutes but the former will not pass the minimum requirement and the latter will. The difference can be literally that small. There may also be no formal testing done of some brands in Australia.

Regarding The Patterns

The outside face of the glass blocks is smooth, the pattern is always on the inside of the block making it very easy to clean.

Cross-ribbed Glass Blocks

The lines run horizontally on one side of the glass block and vertically on the other giving a cross-line look.

Special Order Blocks

Some of these glass blocks are not stock items, we have three ranges of bricks and there are too many to hold stock of them all.
Special Order may mean a short wait from interstate or a long wait from overseas.
